Sheet Foam - 10" x 4" x 5/16" (10 Piece) (SKU: Foam-10-4)

Regular price $50.00

This is a Synthetic Polyether Open-Cell Foam with a 3M peelable adhesive.

Our Foam Seal

We use open cell foam to seal our doors.  Most factory open cell foam is a polyester based foam that is biodegradable, which is why it comes apart and blows out of the vents.  Our foam is a synthetic polyether based foam that is not biodegradable and therefore will not deteriorate like the original foam. A common question that we get here is “Why don’t you use closed cell foam like the other guys?” The simple answer is, we’d love to, but we have yet to find closed cell foam that will perform satisfactorily in an HVAC box. There are a few requirements that foam must meet in order to be acceptable for use on our replacement doors:

  • The durometer or “squishiness” of the foam must be soft enough to sufficiently seal the box. The plastic housings have a very loose tolerance for what can be considered “flat.” We’ve had boxes here that have had as much as 1/4 inch gap on the sealing surface when the door was closed.  The foam must be able to compress completely on the high side in order fully seal on the low side. Most closed cell foams are too hard to seal properly.
  • The foam must be durable enough to withstand the extreme heat and extreme cold that an automobile will experience. The air conditioner evaporator will produce air temperature around 40 degrees F and the heater will produce around 200 degrees F. Don’t forget the interior temp when the car sits outside in the summer sun all day in Arizona or all night in a North Dakota winter. Very few types of foam can withstand this kind of abuse.
  • The foam must be American made.  We pride ourselves with an American made product produced by American workers.  We will not lower our standards by using a cheaper foreign made foam to increase our profit.

      We are continuously testing new types of foam in order to provide you with the highest quality products available.  If we ever find closed cell foam that meets all of these requirements, we will start using it to seal our doors.  So far, every type of closed cell foam we have tested has failed on one or more of the requirements. The open cell foam we currently use passes all of these tests and will not deteriorate like the OEM foam does.  You will not be disappointed in the performance of our products.



      Actuators are available through our partnership with Ram Parts USA. Click the banner below to visit the website.

      Blend Door USA Banner

      Customer Reviews

      Based on 18 reviews
      89%
      (16)
      6%
      (1)
      6%
      (1)
      0%
      (0)
      0%
      (0)
      D
      Daniel A.
      Perfect solution

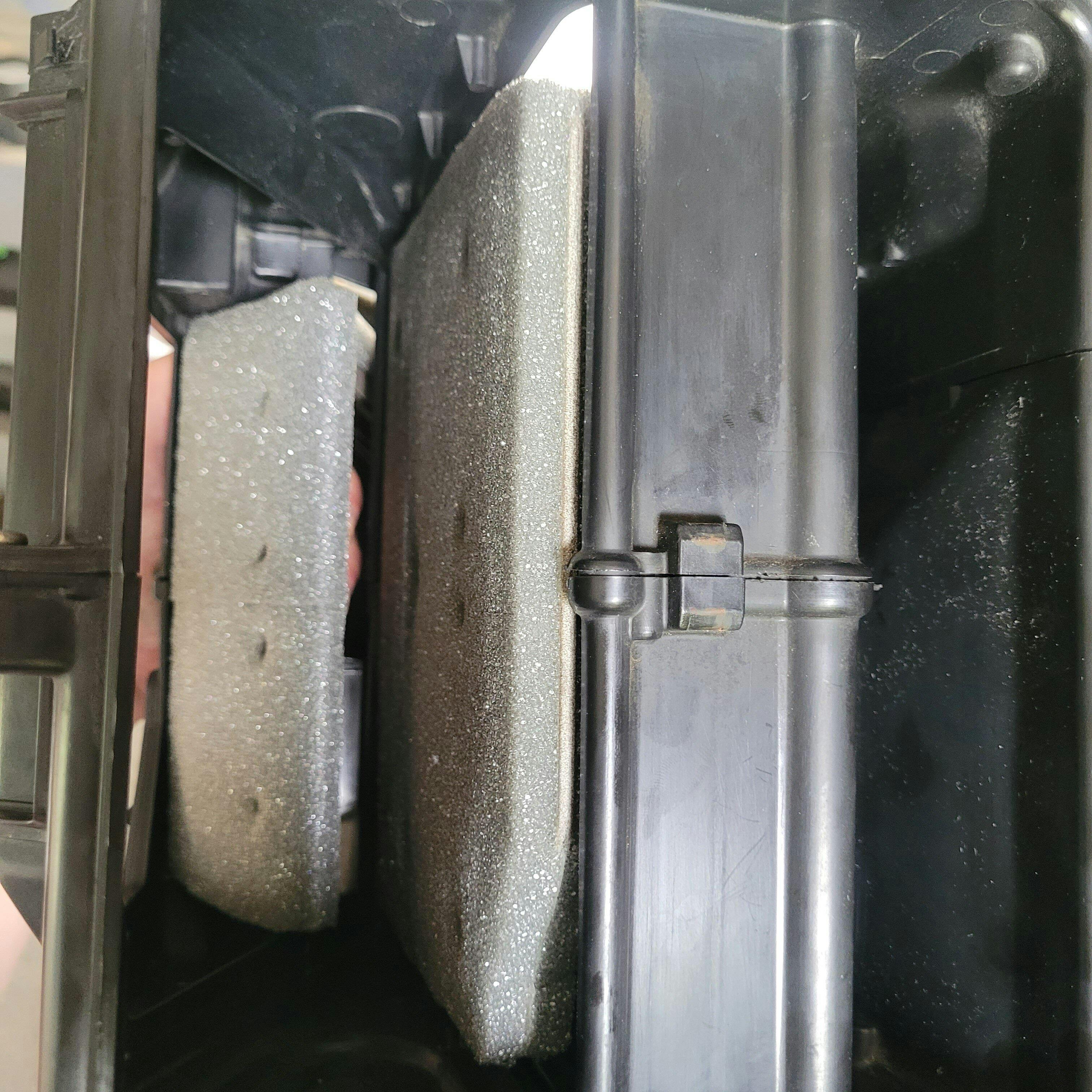

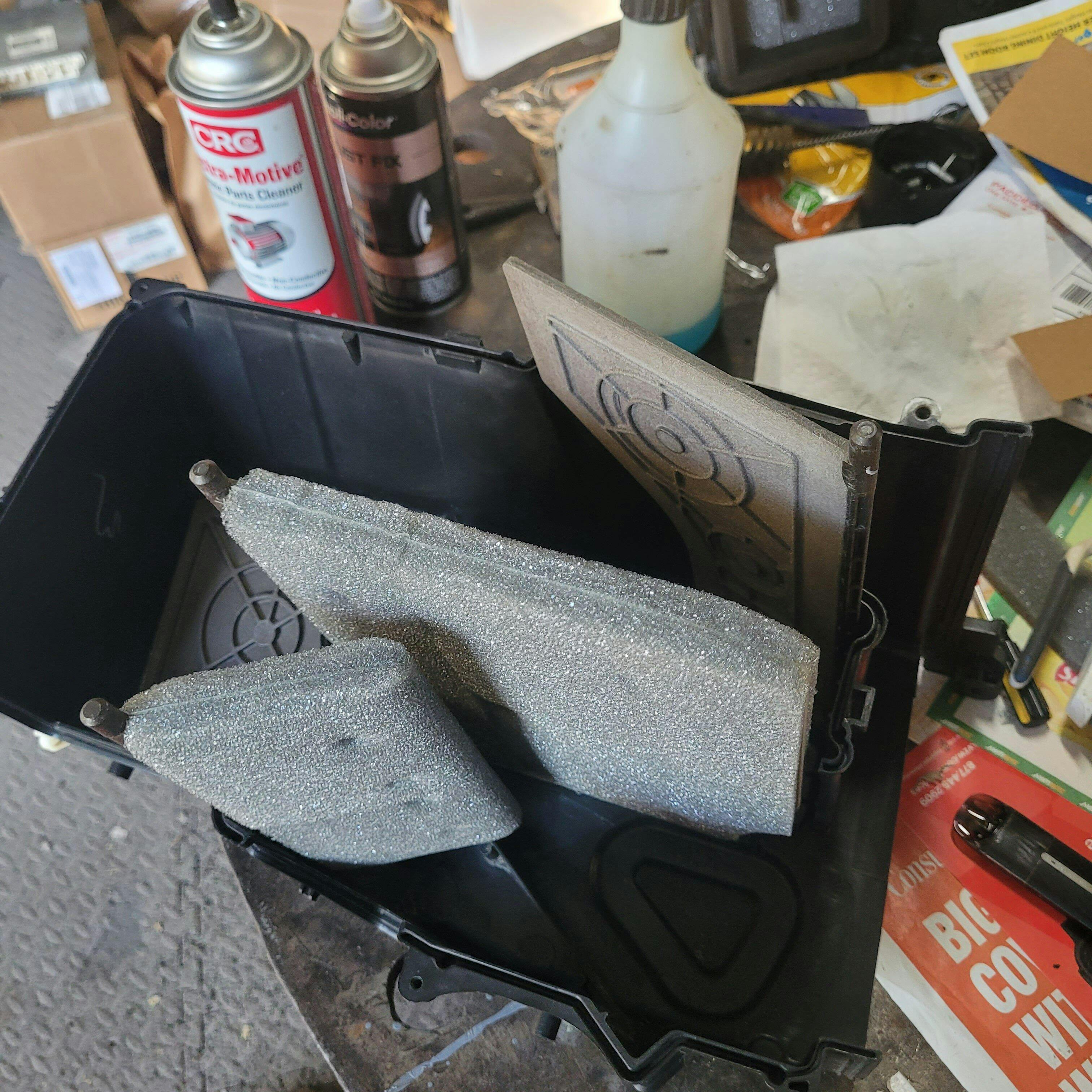

      Best material I could find to fix my blend doors. Shame there isn’t a kit specifically for mk4 generation VWs but with a little improvisation my heat and AC work like new again! Definitely worth the investment.

      S
      Steven P.
      Sheet Foam and Blend Door Driver

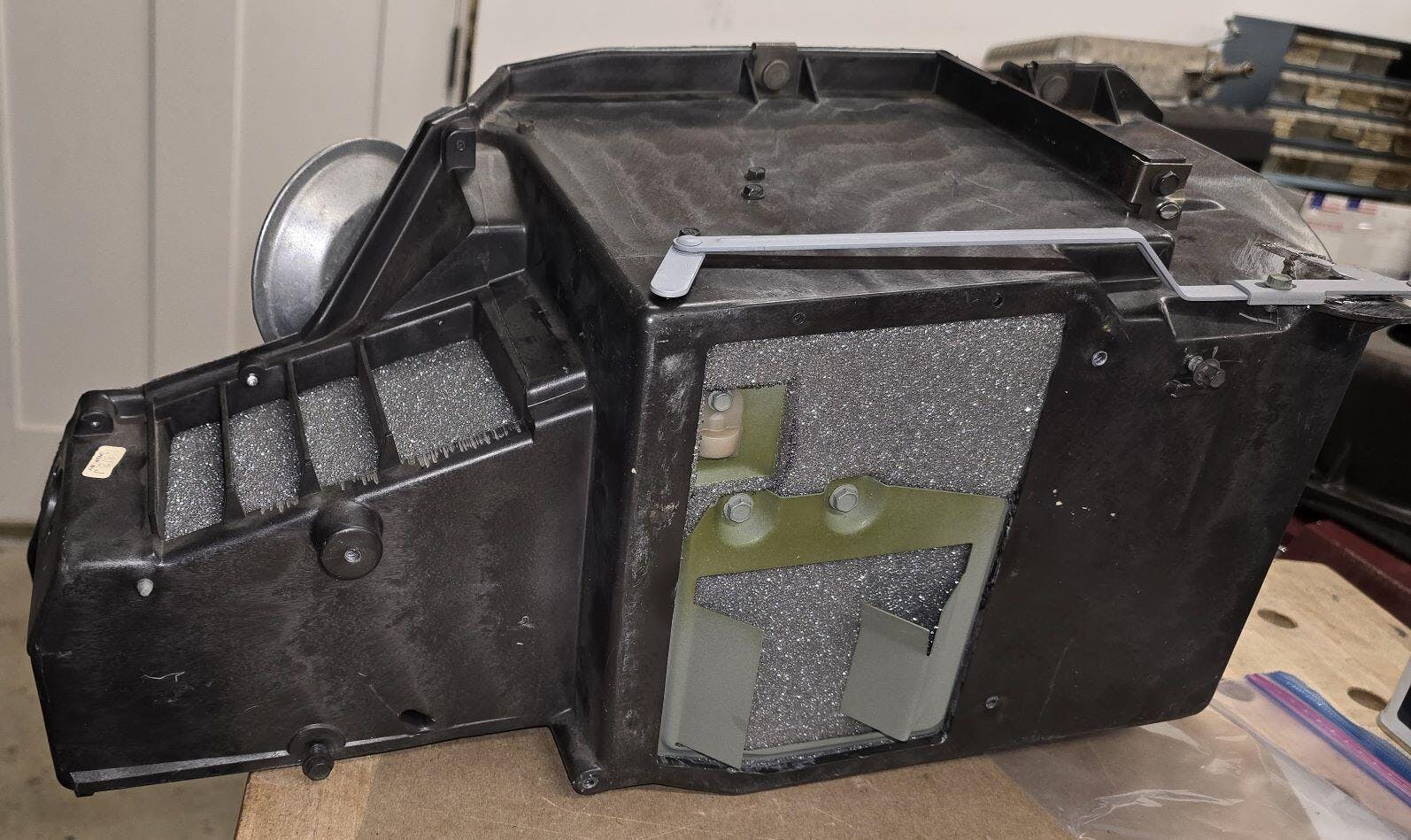

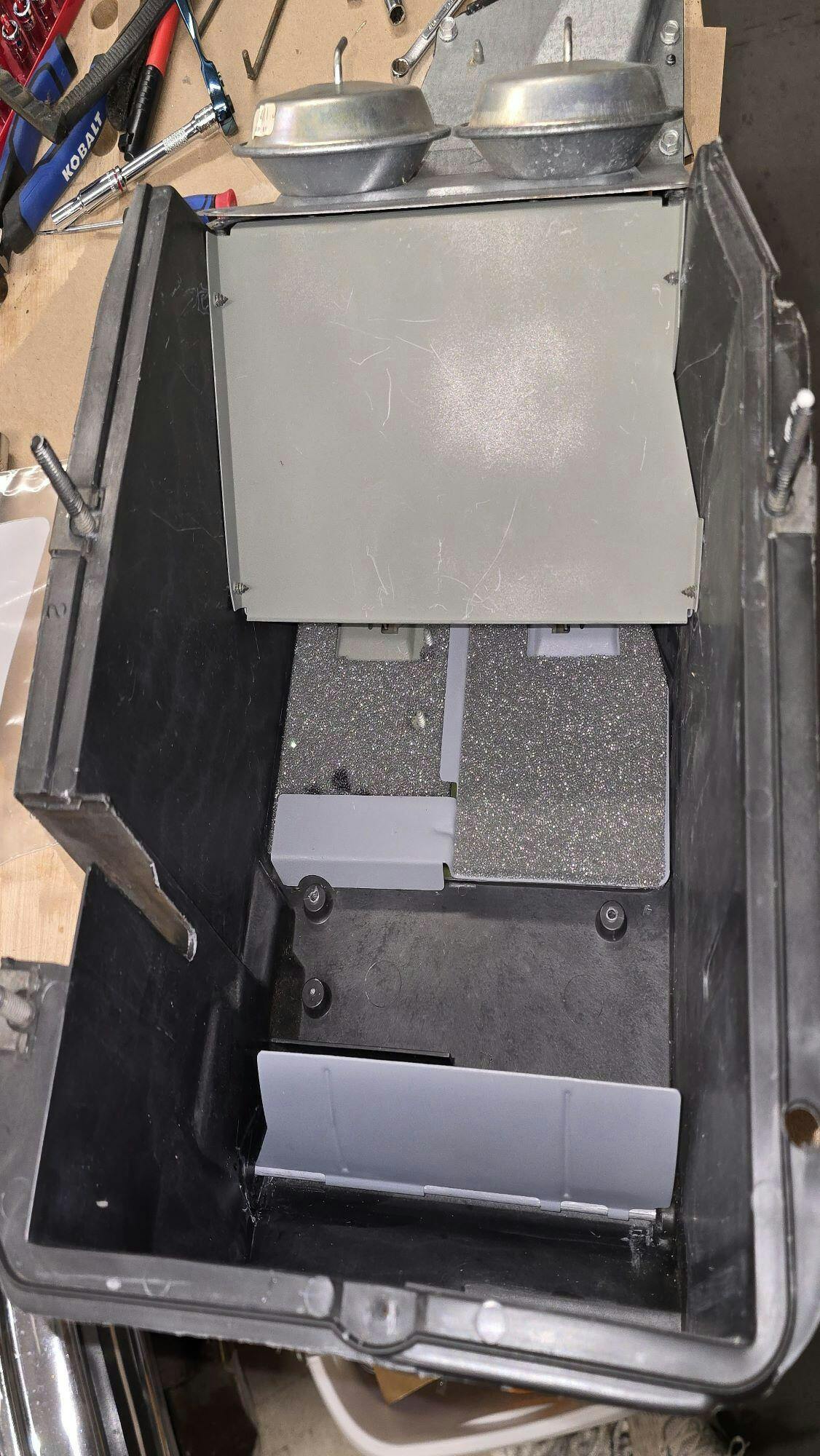

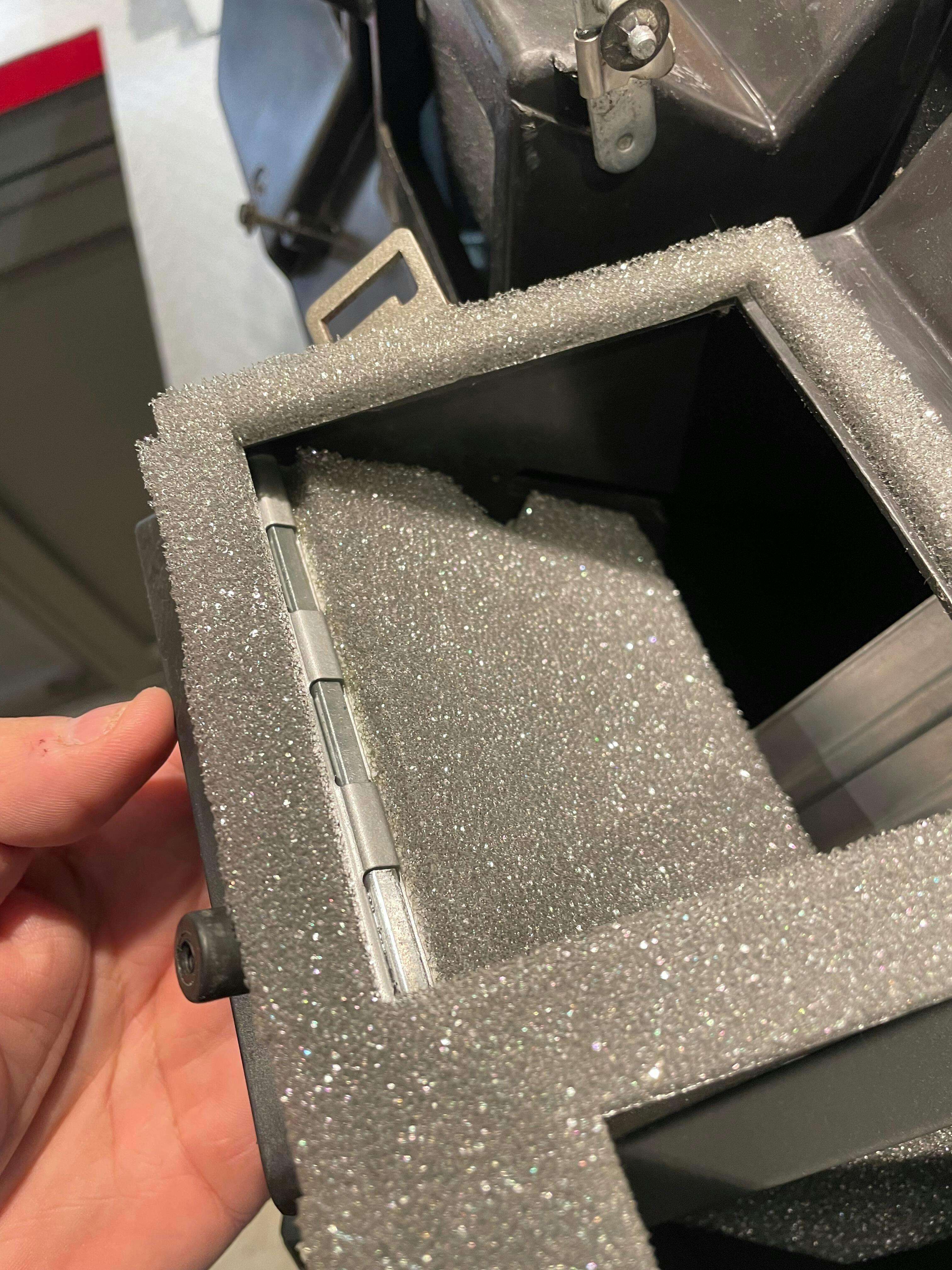

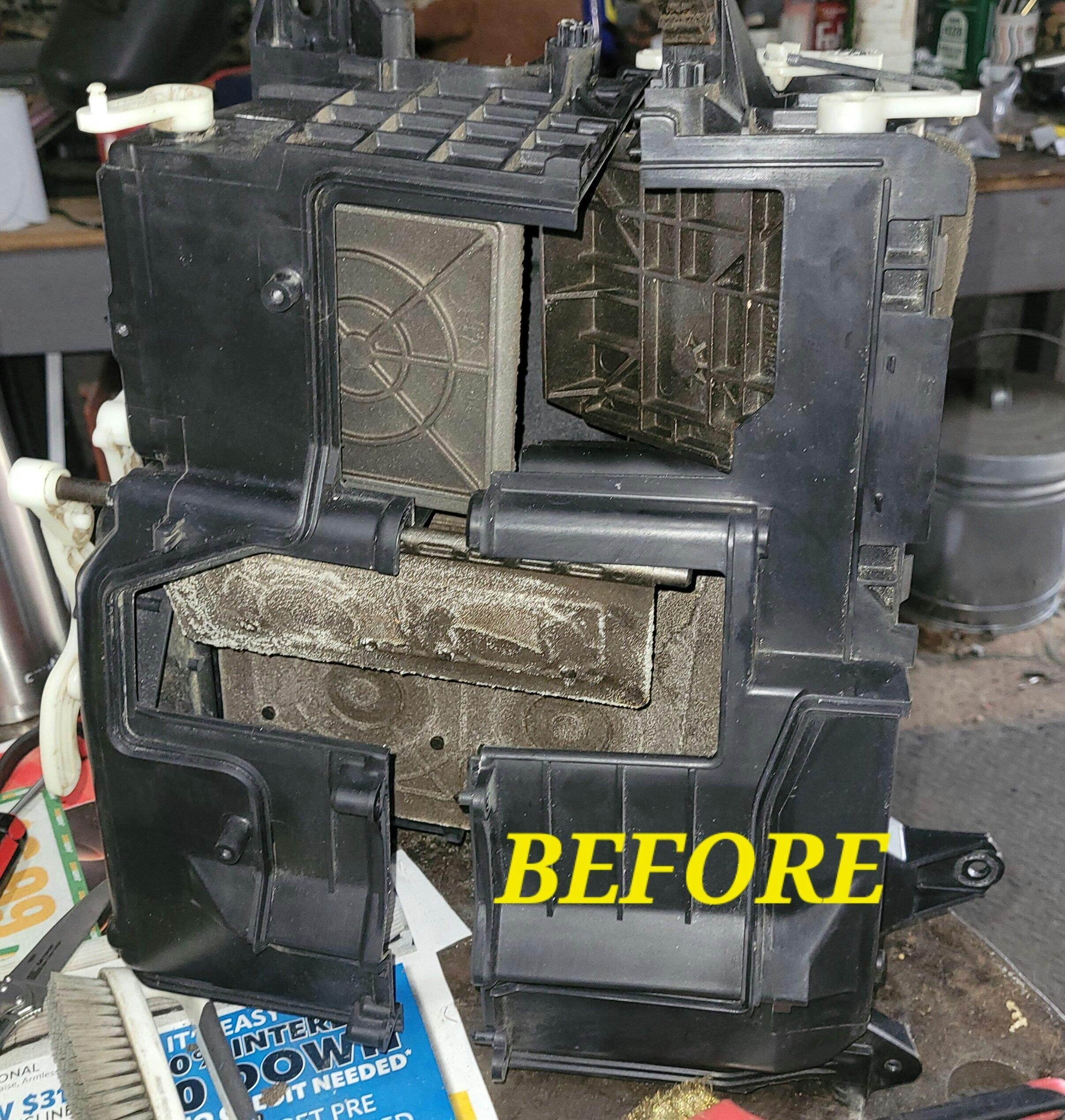

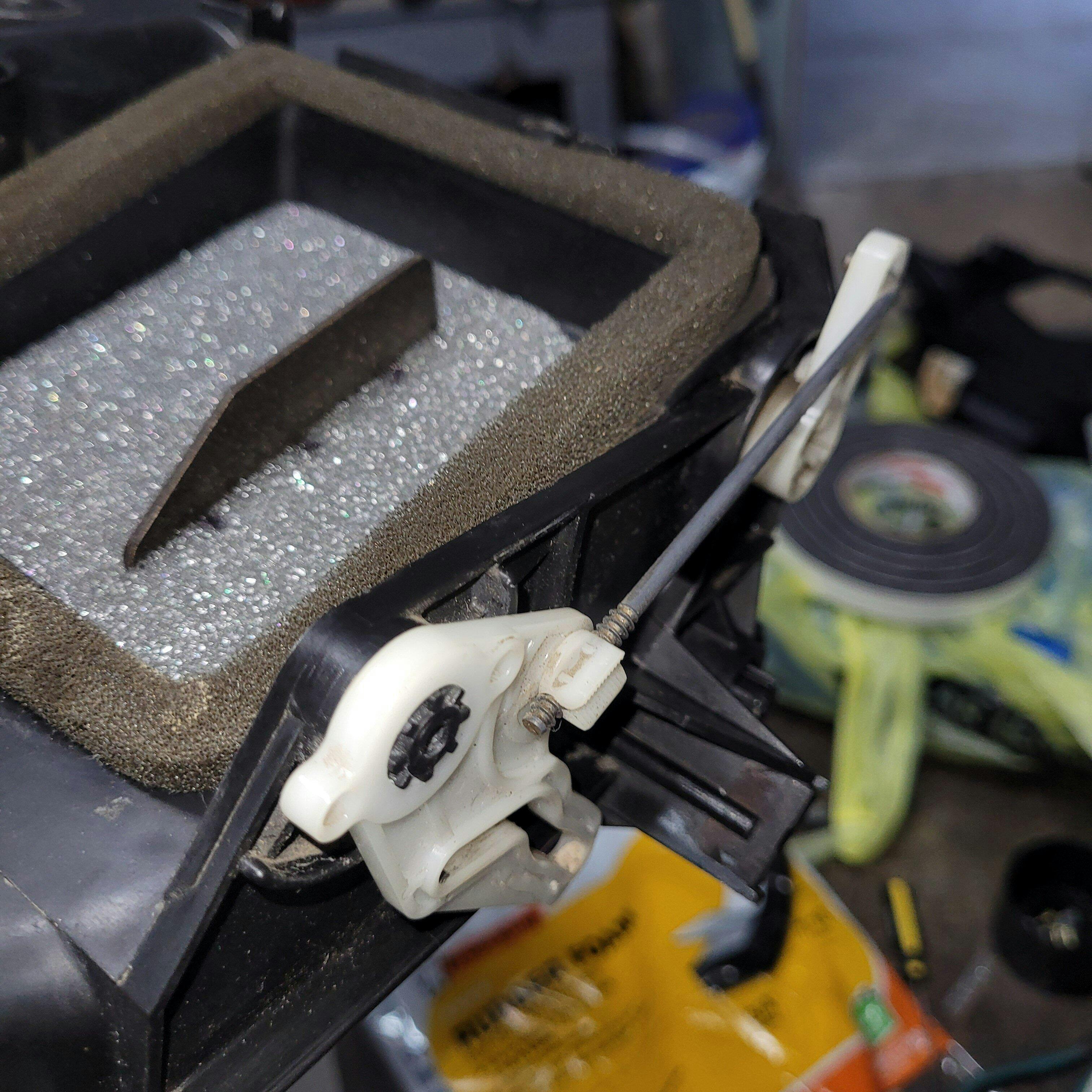

      Foam sheets were perfect for use in resealing my entire 99 Ram heater box assembly. Easy to cut with scissors and apply. Great adhesion with the peel and stick backing. Aluminium Blend Door Driver is a great alternative to the plastic ones.

      H
      Hector G.
      Perfect

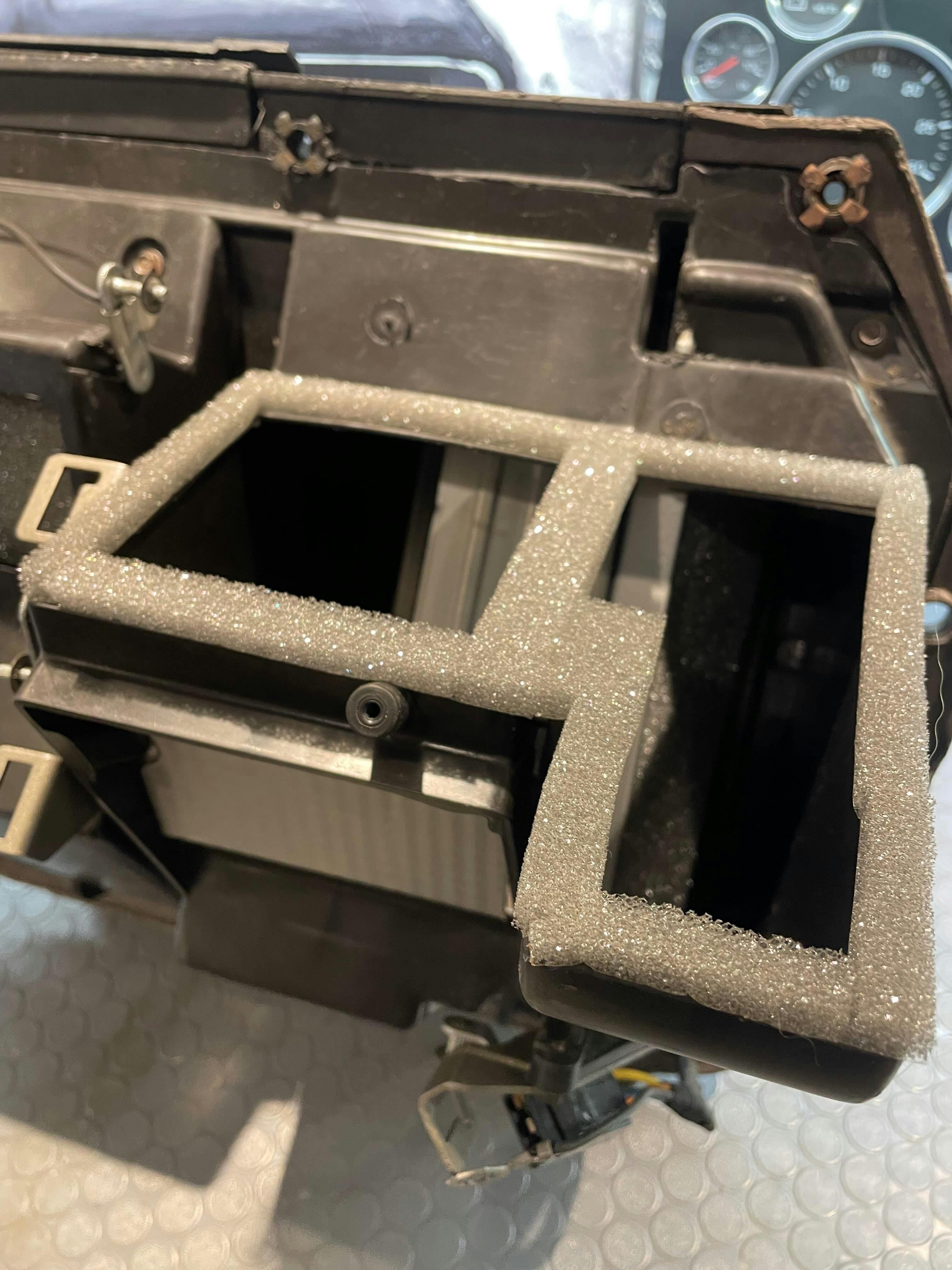

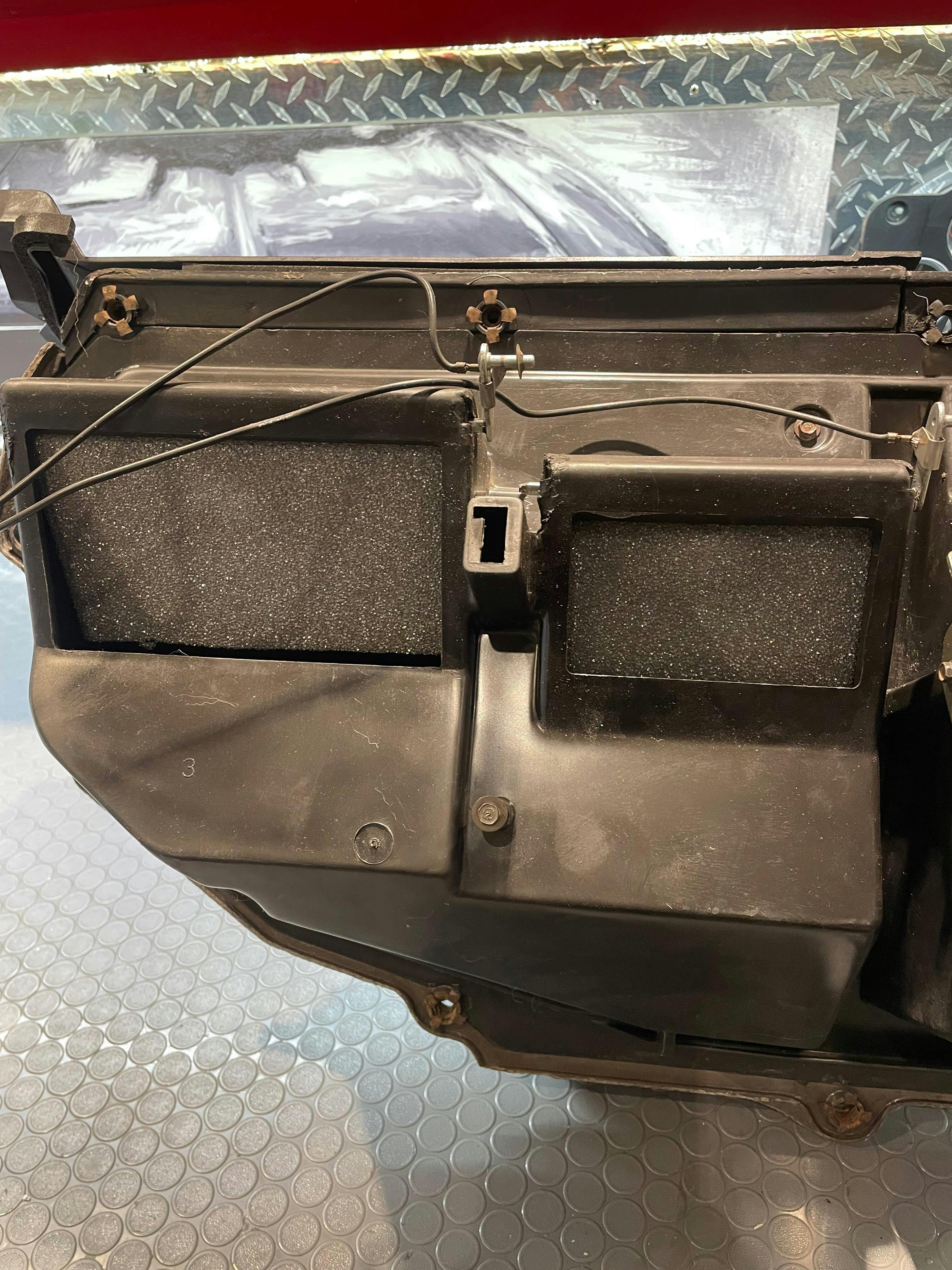

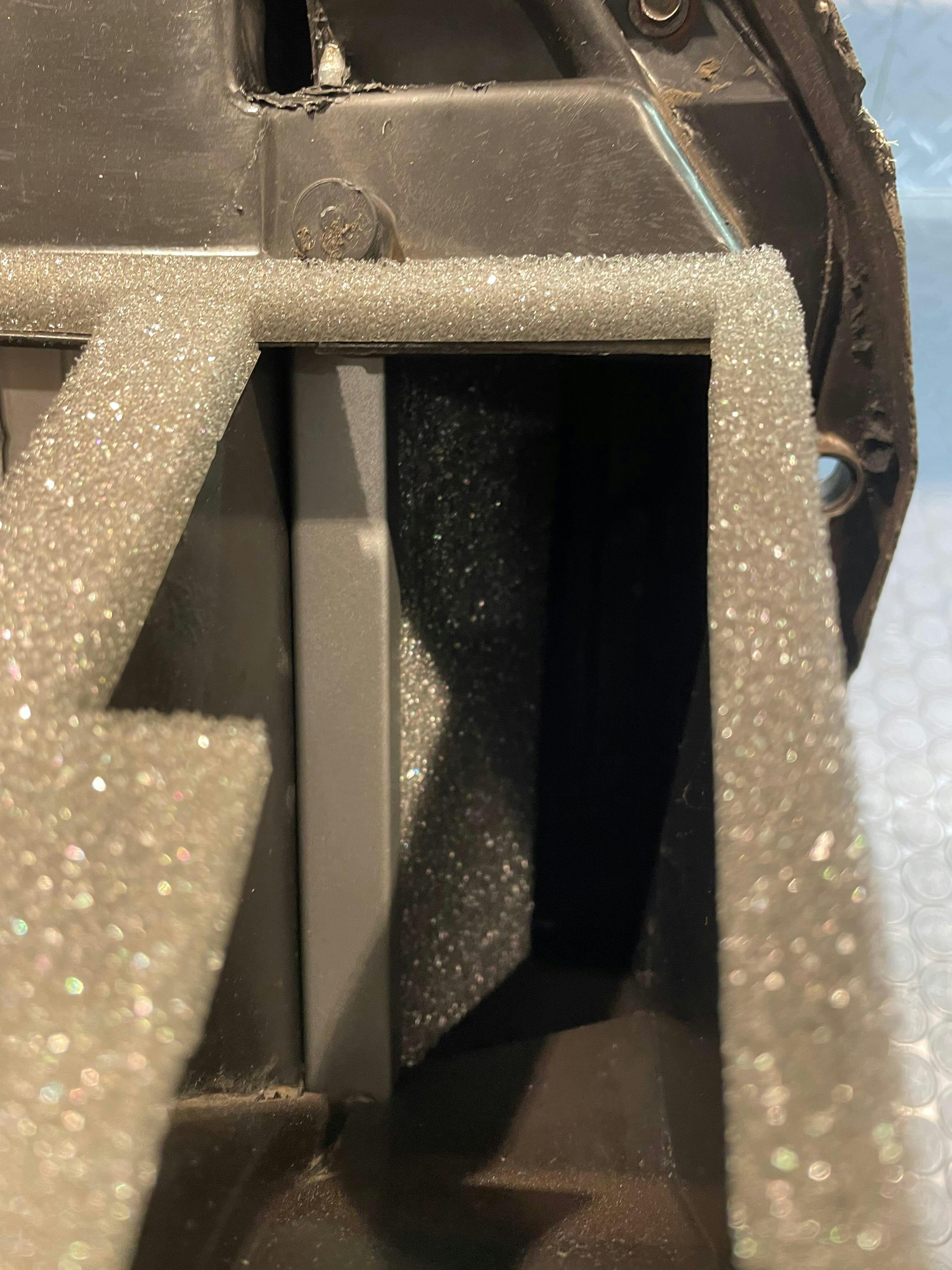

      I used this to reseal the whole hvac box in my 2nd gen ram, worked great.

      J
      Jason B.

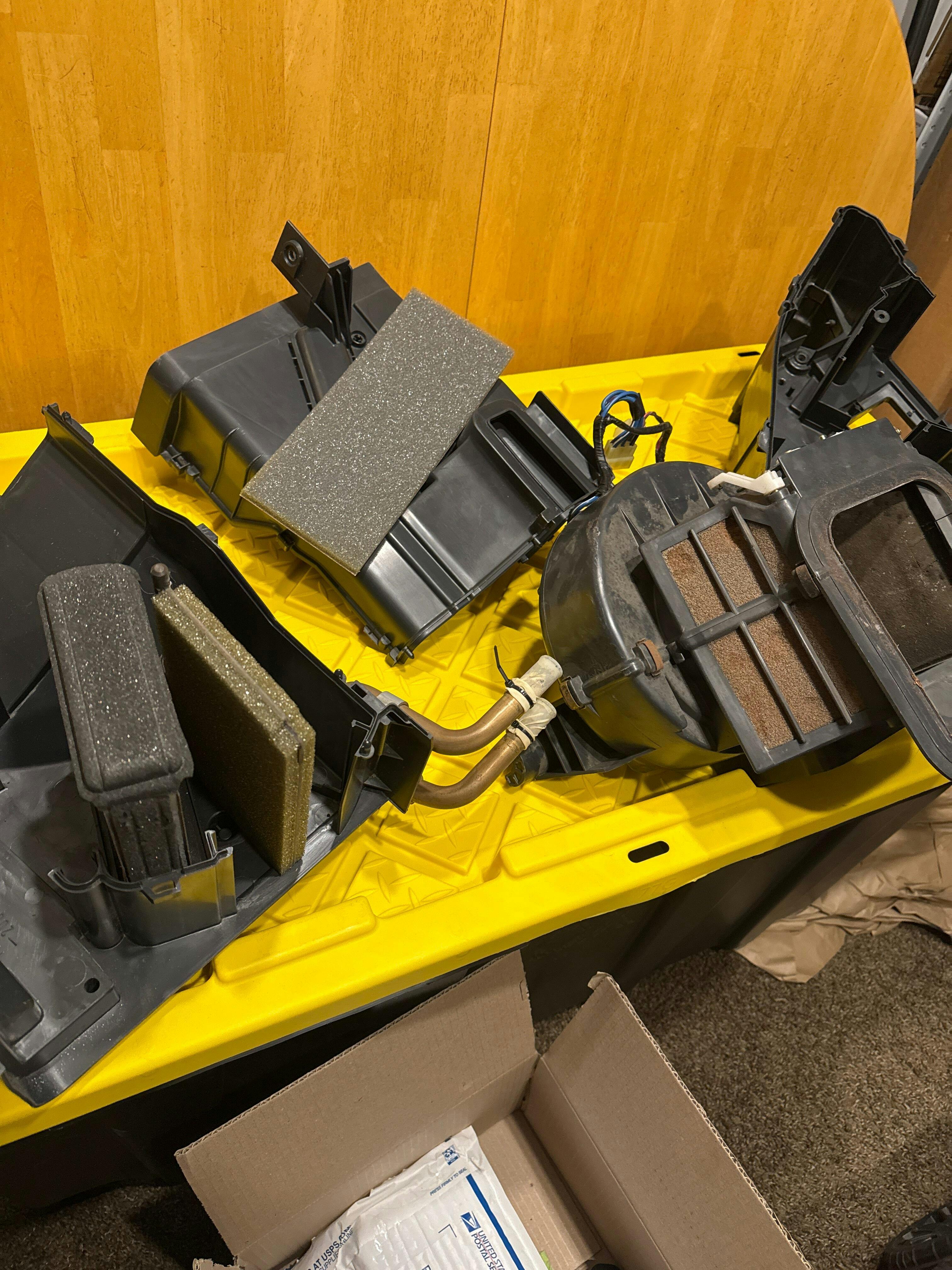

      Jeep heater box rehab

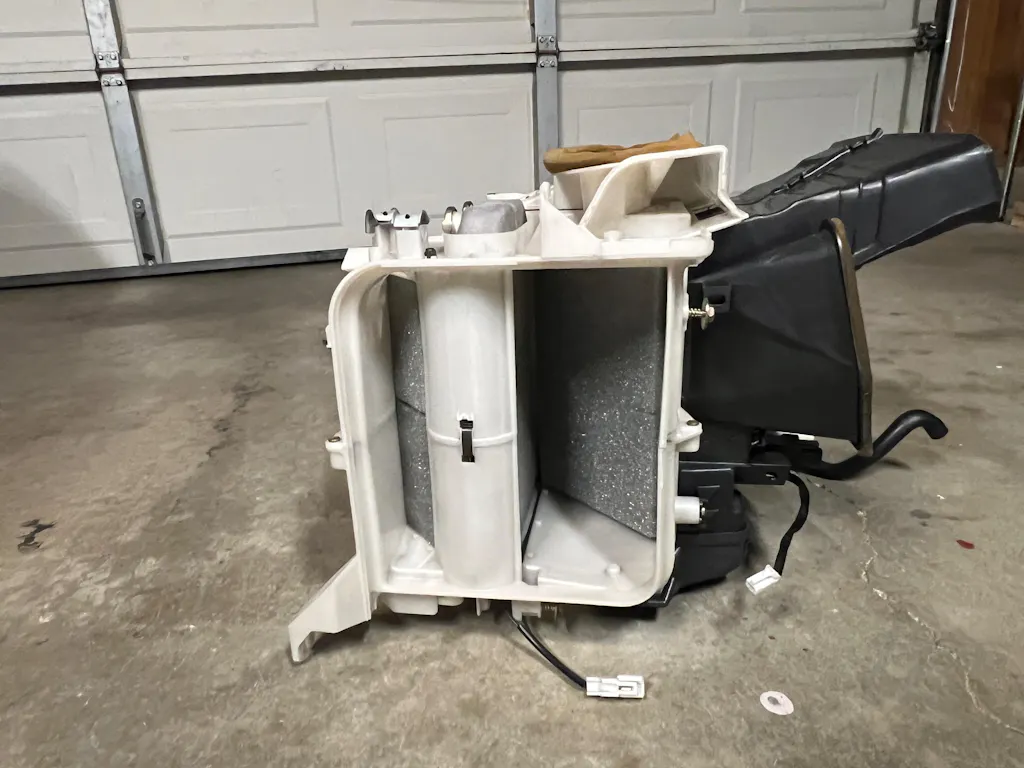

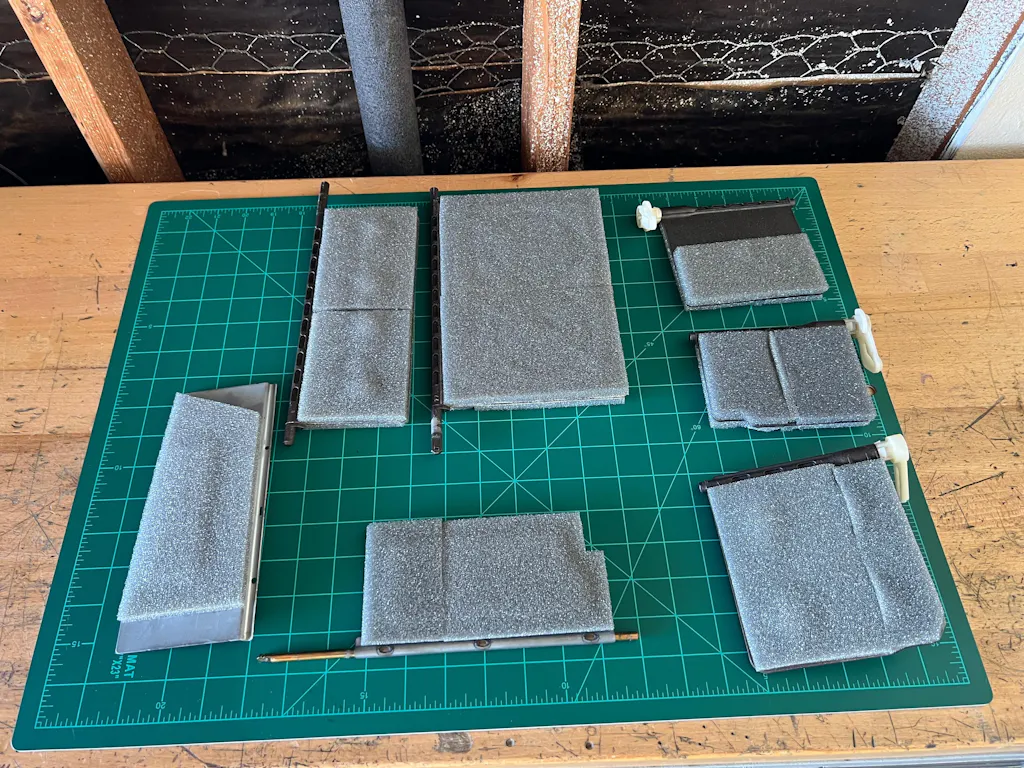

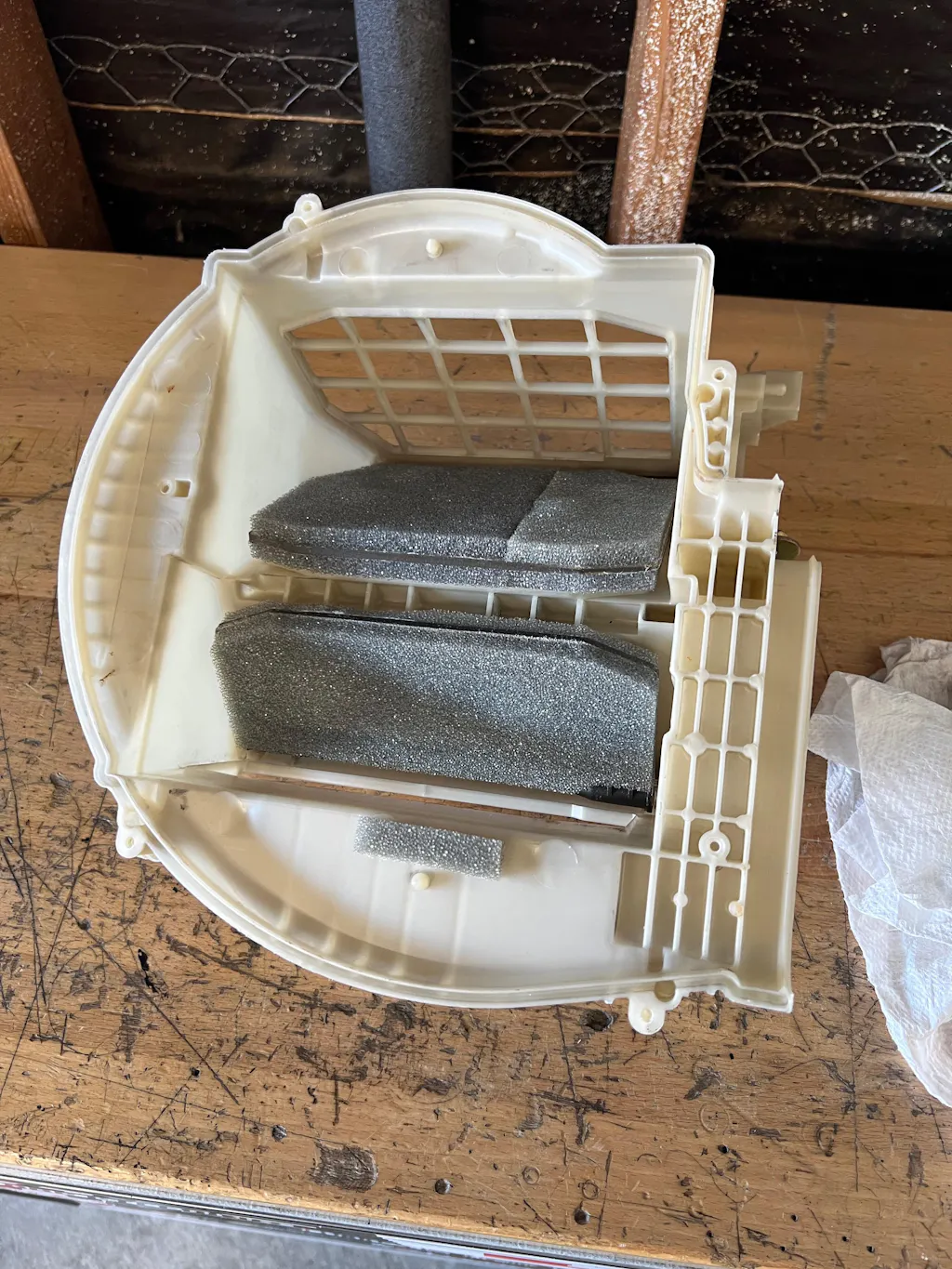

      These replacement pieces worked great. Since I had the box out I rebuilt everything

      R
      Robert E.
      second set

      i installed them on my 06 2500. I liked them so much i installed a second set on my 08 2500
